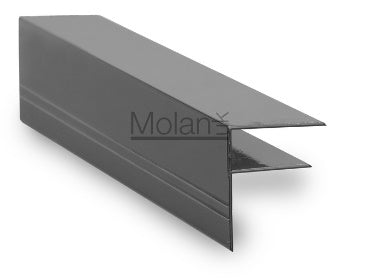

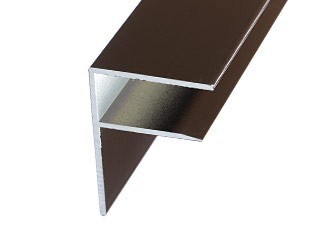

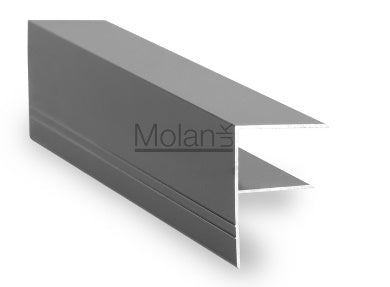

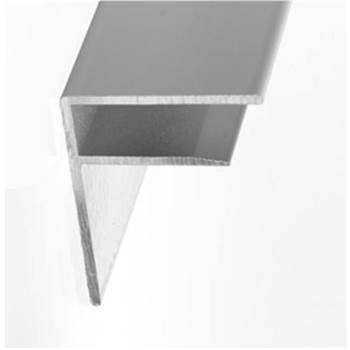

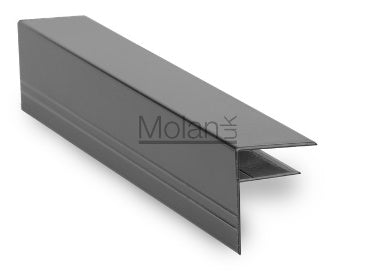

Aluminium F Section Gable Bar - (C)

 Fitted on its own

A simple yet effective method of finishing the gable ends of a lean to roof.

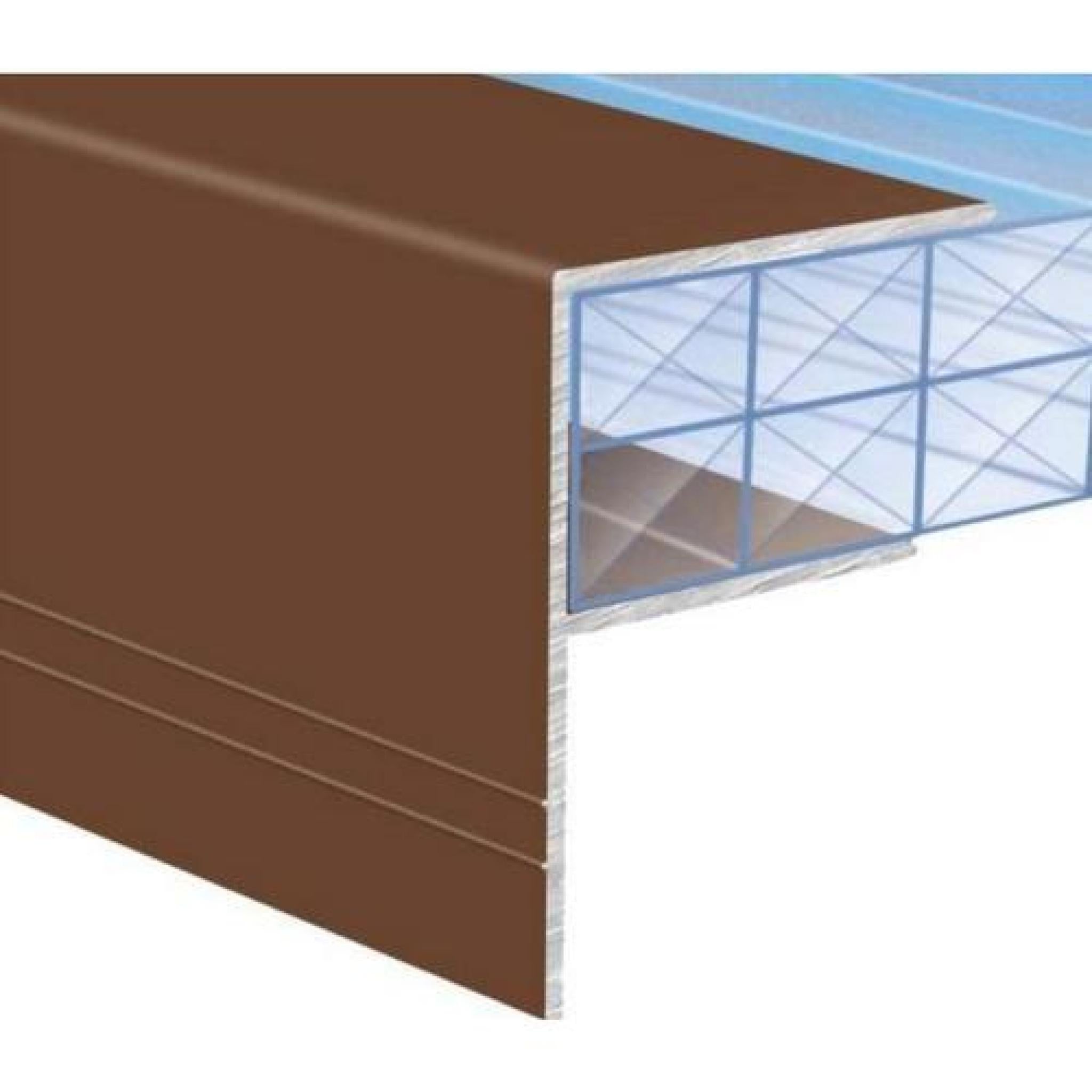

Can be used either face fixed to the outer edge of the end rafter or inverted and screwed to the wall with the addition of a bead of sealant where the roof abuts a wall, to ease the flashing process. Sheets should be sealed within the 'prongs' with a low modulus neutral cure silicone sealant.

Fitted into a Sunwood T60 Glazing Bar

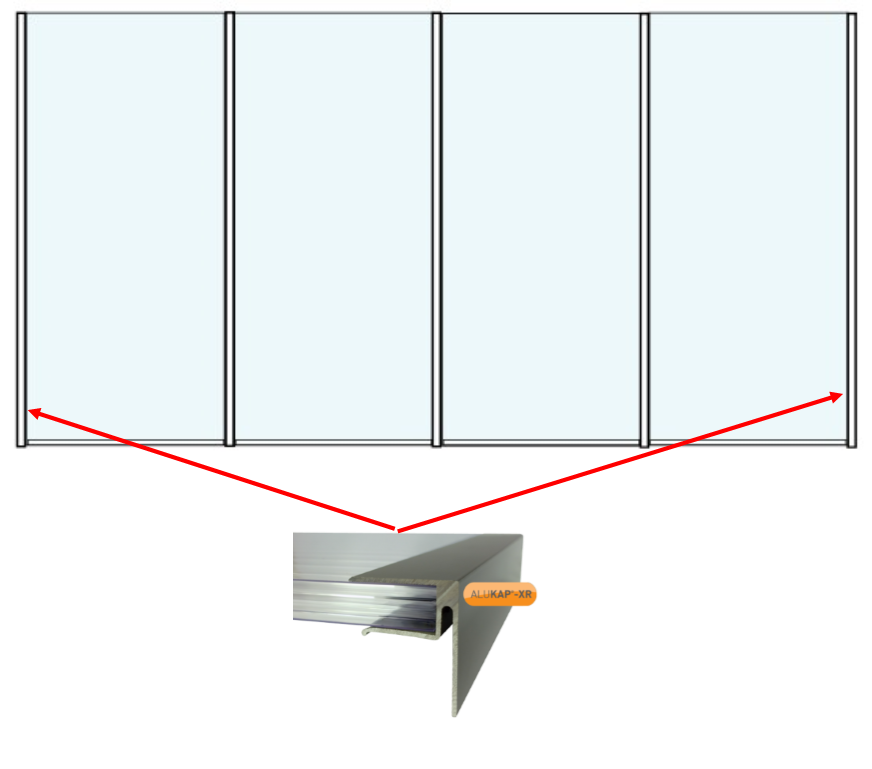

The F section can also be fitted into one side of the T60 glazing bar to finish the edge rafters off as shown below.
