EZ Glaze 'Beehive' Polycarbonate Roof Panel

EZ Glaze 'Beehive' Polycarbonate Roof Panel - Light Diffusing Prismatic Finish

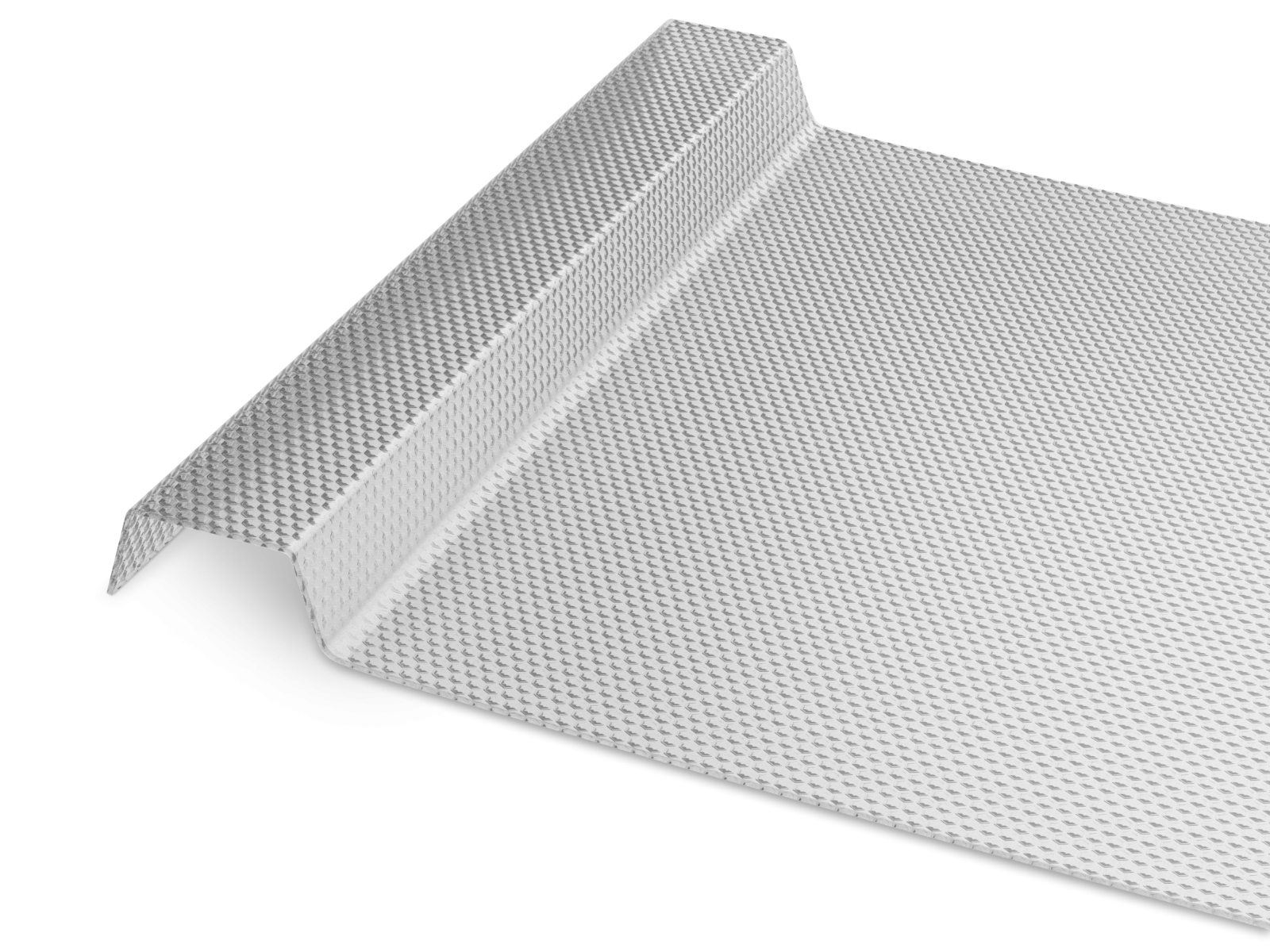

'Beehive' prismatic embossed polycarbonate roof panels provide exceptional light diffusion. Fits directly onto 50mm wide timber rafters at 600mm centres. Perfect for applications requiring soft, evenly distributed natural light without harsh sunlight. Provides 87% diffused light transmission with attractive prismatic texture.

✓ Key Features & Benefits

• Light Diffusion: 87% light transmission with prismatic embossing for soft, even illumination
• No Harsh Shadows: Beehive texture scatters light beautifully throughout the space
• Easy Installation: Fits directly to 50mm timber rafters at 600mm centres
• Weather Resistant: Rated for 400kg/m² snow loading - built for UK weather
• Fire Safety: European Standard EN13501 - Bs1, d0 flammability rating
• UV Protection: Blocks harmful UV rays while maximizing natural light

Technical Specifications

• Finish: Clear with prismatic 'Beehive' embossing
• Thickness: 2.8mm polycarbonate
• Panel Width (Overall): 688mm
• Cover Width: 600mm (effective coverage per panel)
• Available Lengths: 2500mm, 3000mm, 3500mm, 4000mm, 6000mm
• Light Transmission: 87% (diffused through prismatic texture)
• Snow Load Rating: 400kg/m²
• Fire Rating: EN13501 - Bs1, d0
• Rafter Spacing: Designed for 600mm centres
• Rafter Width: 50mm timber rafters

Installation Guide

Skill Level: Suitable for competent DIY enthusiasts
Installation Method: Direct fix to timber rafters - no complex glazing bars required
Rafter Requirements: 50mm wide timber rafters at 600mm spacing
Tools Needed: Standard DIY tools (saw, drill, measuring tape)

Coverage Calculation: Each panel covers 600mm width. For a 3000mm wide roof, you'll need 5 panels (3000mm ÷ 600mm = 5 panels).

Perfect Applications

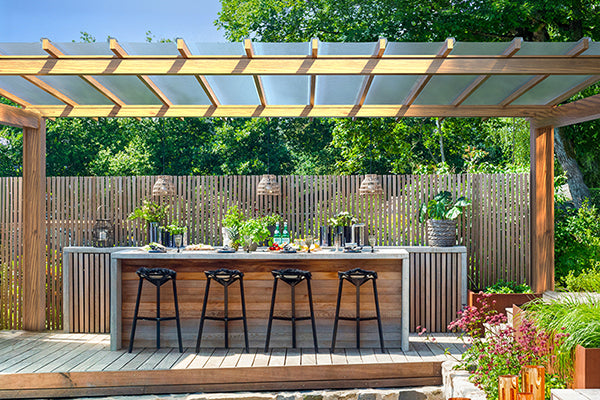

• Pergolas requiring soft, even lighting
• Photography studios and creative spaces
• Garden rooms and home offices
• Carports where glare reduction is important
• Patio covers for comfortable outdoor dining

Why Choose Beehive Prismatic Finish?

• Even Illumination: Eliminates harsh sunlight and hotspots
• Maximum Light: 87% transmission - nearly as bright as clear panels
• Comfortable Spaces: Soft, diffused light reduces eye strain
• Attractive Texture: Prismatic pattern adds visual interest
• Easy Installation: Direct-fix system saves time and labour costs

Need help calculating how many panels you need? Measure your roof width and divide by 600mm (the cover width per panel). Select your required length from the options above. For technical support or custom requirements, please contact us.

Compatible with EZ Glaze accessories including wall flashing, panel fixings, and rafter tape (sold separately).
